New timelapse movie: The alps in winter

Here is the very last part of my alps in timelapse series:



The music is as for the rest of the alps films from Chris Smith (www.chrissmith.tv)

This is the last film from the series! As I live now in Norway, the next film will probably be about Fjords and hopefully auroras!

The Alps in Timelapse -- part III (Morning Mood)

Here is the third part of the Alps quadrilogy:

Timelapse: The Alps (part II). Night timelapse shots

Here is the second part of my Alps quadrology:



And some images:

A new timelapse movie: The Alps -- Part I

Here is a new timelapse movie I shot this summer and autumn in the Swiss alps. Mostly on mountain hikes:



and a few images:

Morocco/Maroc timelapse movie

Here my latest timelapse movie with clips taken in Morocco:




www.magictimelapse.ch

Remove dust spots with Adobe After Effects

It's been a while since I wrote a tutorial how to remove dust spots with Photoshop, see here: http://magictimelapse.blogspot.com/2009/02/batch-remove-sensor-dust-in-images-with.html . Now if you have After Effects (I use AE CS4), you can skip this photoshop step and do it directly in After Effects.
Shooting on Sahara's dunes in Morocco's desert, I caught a large amount of sand grains in my camera (without actually changing the lense at any time, the sand just came in...), so I had to find an efficient way to remove the resulting dust spots...
Being an Adobe product, After Effects comes with a few filters that are also included in Photoshop, luckily also with the Dust & Scratches filter. As in Photoshop, you do not want to apply the filter to the whole frame, but only where the dust spots are. To do so, in AE one uses Masks:

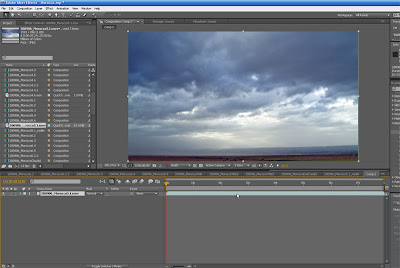

First import your images into a new composition. Copy your ground layer by clicking on it and pressing ctrl-c ctrl-v:

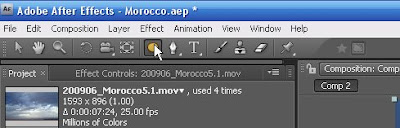

You have now two layers. Select the upper layer. Then click on the "Ellipse Tool" in the tool bar (if the ellipse tool is not there, just alt-click onto the corresponding symbol until it appears):

using this tool, mark all dust spots in your image:

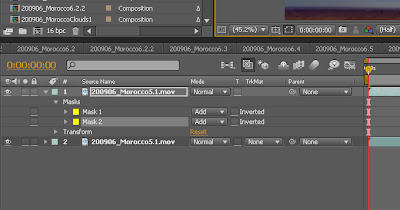

In the upper layer, two mask have appeared:

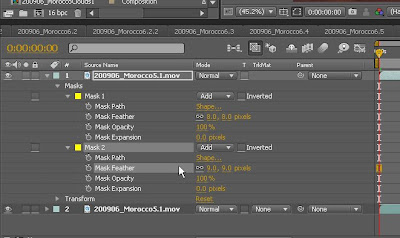

By clicking on the little arrow, you can open their menues. Change the values of "Mask Feathers" to maybe 5 - 10 Pixels. This value says (at least if I understood correctly...) how sharp the mask will be:

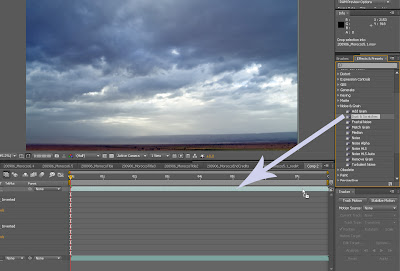

The open the Effects menu, select the Noise & Grain menu and there the Dust & Scratches filter. Drag it onto the upper layer:

Set the "Radius" value of the filter to maybe 20-40 and the threshold to 0. The dust is gone and it will not look washed out as if you use the stamp tool to do the same!


Btw: If the spots are still a little dark, it helps to increase the brightness of the upper layer a few percentages (Filter... Color Correction... Brightness & Contrast)




I will upload the finished timelapse movie somewhen next week onto vimeo and youtube!



Find my timelapse movies here:
www.magictimelapse.ch

My timelapse clips in a hip hop clip

Some of my clips were featured in this clip:

The last images of my sigma 17-70mm/f2.8

It happened: On a alpin hike while climbing up a cliff my canon 50d fell out of my rucksack onto the lense which broke into pieces... The body survived at least with a broken secondary LED display. So I guess I need a new lense urgently...
Here are its last images:









And after falling down the cliff:



The timelapse movie will follow "soon".

www.magictimelapse.ch

Provence and the Côte d’Azur in Timelapse

Just added a new timelapse movie to vimeo, with clips taken in the Provence and at the Côte d'Azur in France. Most shots were taken using a Hoya ND400 (Neutral Density) filter, allowing exposure times of seconds instead of below 1/100s or so. The result is a very smooth timelapse movie.
The drawback is that the ND400 is not a very neutral filter (neutral would mean that every wavelength (=color) is attenuated by the same amount) and color correction needs to be applied in post production. I managed this by using a rather cool white balance around 3000-4000K depending on the amount of clouds.
Here is the resulting movie:





www.magictimelapse.ch/en

Holidays in Provence/France: Hoya ND400

Some time ago, I bought the neutral density filter Hoya ND400, which allows 9 aperture stops longer exposure (about a factor 1000 in exposure time!), making it possible to expose for seconds during bright daylight. That is great, when shooting time lapses of lakes with waves, of people or other situation, when things just change too fast. Unfortunately, the ND400 is not really extremely neutral, meaning that some colors are absorbed stronger than other. However, with adjusting the white balance, the results are pretty acceptable:

Our rented house near Fayence:


Tourettes, between Vence and Grasse:

Giacometti's figures in the Fondation Maeght, St Paul de Vence:



All images are from time lapse series.

www.magictimelapse.ch

Interview

On Peter Salvia's blog you will find an interview he made with me some time ago. There are also very helpful tutorials about Final Cut Pro, especially the workflow for publishing on vimeo. In principle the same workflow should also work with time lapse movies!

Spitzmeilen: Timelapse movie

Here is a time lapse with footage from a two day skitour around Spitzmeilen, Switzerland. Most are HDR time lapses. To deflicker I used GBDeflicker, which can be tried out here: http://www.granitebaysoftware.com/Product_gbdeflicker.aspx

Pans and Zooms with Adobe Premiere (Elements)

People (like me) whose photo equipement is already heavy enough, do not want to carry a Meade mount or something similar in remote places. Still, pans look great in time lapse sequences.
To some amount, these pans and even zooms can be done in post production, what I will explain here with Adobe Premiere Elements.

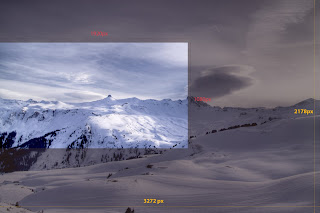

To save some memory on the memory card, I usually shoot in sRaw1, with 7.5MegaPixels (3272x2178). The final movie should be HD (1080p, that means 1920 x 1080 pixels), what leaves lots of space for pans and zooms, as illustrated below:



The window denotes the HD window, which can be moved to create the panning effect. The keyframes in Premiere are great to do that.

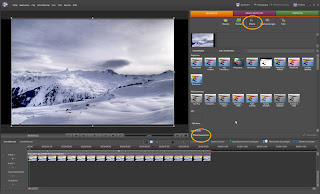

To use them, I import the images as "image sequence" in Premiere. I drag the sequence into the scene window, then click on the "Effects" tab and on "edit effects":

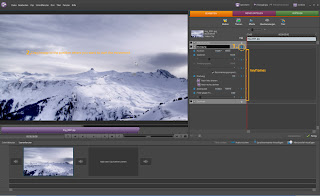

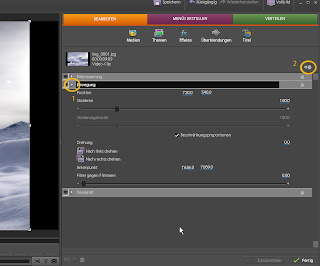

Then open the "Movement" menu and click on the "show keyframes" symbol:



Then click on the little watch ("show/hide animations"). Drag and zoom the image in the movie window to where you want to start your virtual pan and zoom. You will note that little diamonds are added in the effects timeline. These are the keyframes:

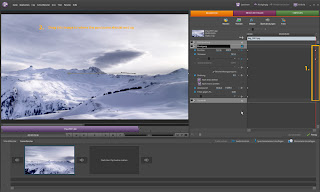

Then move the red line in the effects timeline to the right end. Drag and zoom the image where you want to end it up. This defines the pan and zoom between the two keyframes.

I used this technique in most of my recent time lapses, e.g. in the middle sequences (around 1:00) of this one:




www.magictimelapse.ch

An awesome HDR time lapse

Creative and great skills:

Ski tour on the weekend

No time lapse post, just a few images from the ski tour some friends and me made on the weekend.
On top of the mountain (Wissmeilen), drying the climbing skins:


A stitched panorama (with autopano pro), from the same mountain:



And from a time lapse sequence, I hope I will process soon, during the night from Friday to Saturday. We slept in the SAC (Swiss Alpine Club) cottage Spitzmeilen. I left the camera out for about 4 hours (2 changes of battery), 1 minute exposure time.


www.magictimelapse.ch

Tilt shift time lapse

Here is a great time lapse movie from Erik West:








The tilt shift effect was added later in post.

"deshake" a time lapse sequence taken in windy conditions

In Barcelona I shot some time lapses in very windy weather and I only had the gorilla pod as a tripod with me. The result makes you seasick when watching.
Here is a still from that sequence:

Luckily, there is photoshop with its great "auto align" function. This will nicely deshake the movie. To use it, proceed the following way:
First load all the images as a stack into layers (File... Scripts... Load Images into Stack)


Then use Selection... Select all layers

The auto alignment dialog is opened with Edit... Auto Align Layers

With the selection of Auto:


and clicking on "ok", the alignement procedure starts. Depending on the amount of memory you have and the number of images to align, it takes very very very long. Reducing the size of the images speeds the process up by a large factor.

When it has finished, you can save the single layers again into seperate images with File... Scripts... Export Layers as Images...


Then choose a folder and an image format.

Here is the result of the raw and the deshake barcelona movie:





www.magictimelapse.ch

Swiss Winter time lapse meditation

Here is a new time lapse movie with footage I collected on backcountry skitours in the Alps ( or rather from the foothills of the Alps). This one I shot completely in raw, and no HDR processing.

Tutorial: How to create a HDR time lapse

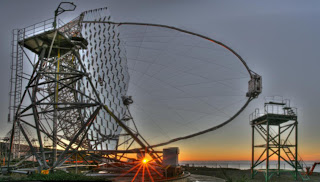

In the last few years, HDR (High Dynamic Range) photography evolved to a serious photography technique. Here an example which is slightly over the top, which I made in 2006 from the telescope I write my phd thesis about. HDR gone bad:
and another one from Agua Azul in Chiapas, Mexico. Kitsch as kitsch can:


Once one gets over the initial phase of playing with the settings and going to the crazy settings resulting into the images above, one can achieve great results.

Technically, HDR images are taken using the bracketing mode, which is included in all DLSRs and even some compact cameras. One takes for example 3 images from the same scene but with different exposure levels. Thus, the dynamic range of the image can be increased, which is great for difficult light situations with lots of light and shadow. Using special software like photomatix or photoshop, one can put together the 3 brackets into one HDR photo. Unfortunately, the dynamic range of the resulting image is too large (32 bit depth) to be displayed on a screen or printer. What one usually does is mapping the image down to 8 bit jpgs by using tone mapping algorithms, which keep the local contrast but reduce the total dynamic range of the image. As displayed in above images, these algorithms unfortunately are prone to artifacts like halos, especially if one is not careful and goes over the top.


For HDR time lapse movie, I first follow the general rules of time lapse photography:

• Focus to manual
• Manual white balance (I use SRaw1 on the Canon 50D to be able later to change the white balance when developping the raw images. 7.5 MegaPixel is more than enough for time lapses)

• Manual exposure time and aperture.


Furthermore, I use either a neutral density filter or a polariser. HDR time lapse movies are very prone to flicker. There is a large discussion going on here, what causes the flickering. Probably it occurs either due to large aperture values because the camera cannot consistently close the aperture to the same diameter for every image as well as due to too short exposure time. I keep the mean exposure time at least at 1/100 s and the aperture below f/8, what seems to work fine. The polariser and the ND filter help in bright daylight to keep the exposure time and the aperture at those values.
Then, I set the camera to bracketing mode +/- 2 EV on the EOS 50D, and to "high speed continuous". In the intervalometer, I use long time exposure, with exposure time at least as long as it takes to take the 3 images from one bracket. (e.g. if the mean exposure time is 1/25 sec, then the underexposed image is 1/100 s and the overexposed 1 sec, so I set the total exposure time on the intervalometer to 2 seconds). With the sraw1 settings, I can take about 3 images in 4 seconds, so I set the interval time such that exposure time + interval time is at least 4 seconds, depending on the subject (for slow clouds 6-10 seconds is fine).
The next step involves waiting for the time lapse series to finish, read a book, listen to music, enjoy the scenery...

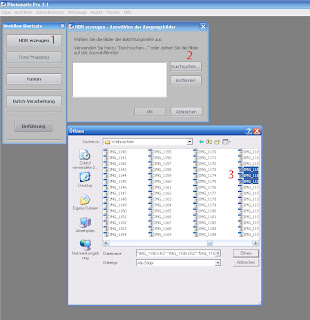

When the card is full (16GB is actually quite reasonable for HDR time lapses, 32GB even more), I go home, copy the card to a disk and start photomatix. I will later use the same tone mapping settings for the whole series with the batch processing feature, so I choose first 3 images from one bracket which is "representative" for the whole series, by clicking onto "produce HDR"

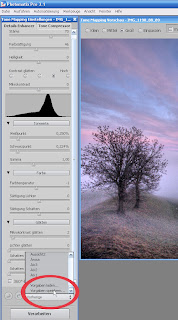

Then twice onto ok until the HDR is created, then tone mapping. Use some decent settings until you like it, then click where I marked it below onto "Save Settings" and save the settings.


Then close the window and the image.
Click on "batch processing", then on "use detail enhancer settings" and with "load settings" load the settings you saved before.

Then click on "choose source folder" and search for the folder you have saved the images. I would save the tonemapped images as 8bit jpgs and choose to remove the HDRs, you won't need them and they need tons of space.
After you finished your settings, click onto run and wait. On my computer this can easily take several hours.

If you are eager to watch your movie, you can use virtual dub to quickly put together the time lapse, but first you need to rename the images such that they are enumbered (e.g. img_001.jpg, img_002.jpg, img_003.jpg etc). For that I use the free program bulk rename utility.

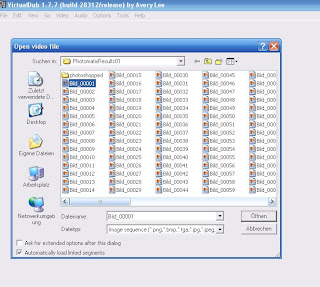

Then start virtual dub, click on file, open video file, choose the first image from your series and "Image sequence" as the file type.
Set the frame rate with Video.. Frame Rate to e.g. 25fps and the Codec with Video...compression to e.g. XviD MPEG-4 Codec. Then resize your images with Video... Filters... Add... Resize to for example 1920x1080. Then save the movie with File... Save As Avi... and wait again a few minutes.

That's it!

An example with mostly HDR time lapses is one from footage I took last summer on holidays in Oregon and California:












www.magictimelapse.ch

New time lapse: Winter fog

A new time lapse I shot in the beginning of this year in or slightly above the fog. I used the image bracketing technique (each frame consists of 3 different exposures with each 2 stops apart) to increase the dynamic range of the scenes. Soon, I will write a little tutorial on how to shoot HDR time lapses.
Watch it in high definition on vimeo:
http://vimeo.com/3128079
or youtube:
http://www.youtube.com/watch?v=NmWkJNIk1uw
(To see it in HD on youtube, you have to select "watch in HD" below the movie window.
